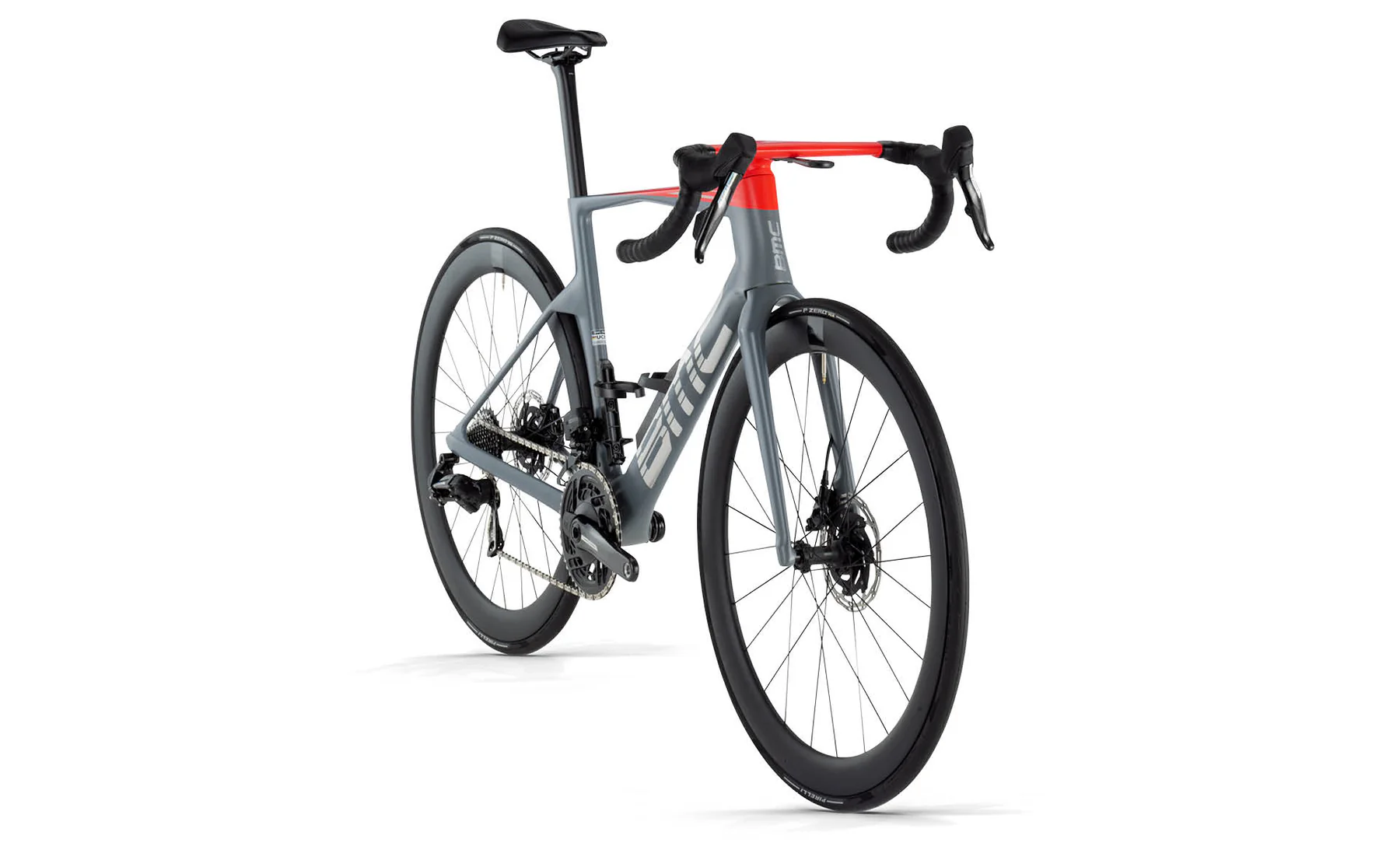

Teammachine R 01
THREE
| The all-new Teammachine R throws compromise out the window. Developed in collaboration with Red Bull Advanced Technologies, the Teammachine R redefines what a race bike is capable of. It does everything you ask of it when you need it most. Built with SRAM Force eTap AXS Drivetrain and powermeter, CRD-501 SL wheelset as well as BMC’s ICS Carbon Aero Cockpit. |
Najbliższy sprzedawca przedstawi Ci ofertę.
Obowiązek informacyjny
Administratorem Twoich danych osobowych jest: Taurus Active sp. z o.o. , NIP 6351864367, Regon 524105331 z siedzibą przy ul. Józefa Wieczorka 11, 43-190 Mikołów, zwanym dalej „Administratorem” . Więcej »
Halo Fork The ultrawide fork legs are unlike anything else seen in the peloton and help keep turbulent air, created by the front wheel, away from the frame. |
ICS Carbon Aero Cockpit The ICS Carbon Aero Cockpit, with its progressive and aerodynamic shape, is the perfect match for this bike. Featuring a narrow top width, allowing an efficient aero position with a greater width at the drops providing incredible control at high speed. |
Deep Bottom Bracket Area We call it the “Mariana Bottom Bracket” because it’s the deepest bottom bracket we have ever made on a road bike and this perfectly optimizes the surface area for cleaner airflow. |
All-new Seatpost The new seatpost is slimmer, deeper, more compliant, and lighter than ever. With the new seatpost clamp mechanism now easier to access and maintain, including an integrated number plate holder making it the smartest way to get race-ready. |
Dane techniczne
-
Rama
Teammachine R 01 Premium Carbon with Aerocore Design
-
Widelec
Teammachine R 01 Premium Carbon, ICS Technology, Stealth Cable Routing, Stealth Dropout Design, Flat Mount Disc, 12x100mm Thru-Axle
-
Korba
SRAM FORCE AXS Power Meter 48-35T
-
Biegi
2×12
-
Kaseta
SRAM FORCE XG-1270 10-28T
-
Łańcuch
Sram FORCE 12 speed
-
Przerzutka przód
Sram FORCE eTap AXS
-
Przerzutka tył
Sram FORCE eTap AXS
-
Manetki
SRAM FORCE eTap AXS
-
Hamulce
SRAM FORCE eTap AXS
-
Kierownica
ICS Carbon Aero, One-Piece Full Carbon Cockpit
-
Siodełko
Fizik Argo Vento R3 (140mm)
-
Piasty
CRD-501 SL
-
Obręcze
CRD-501 SL Carbon – Tubeless Ready – 50mm
-
Opony
Pirelli P ZERO Race TLR 26mm | Tubeless Ready Rims / Tubeless Tires
-
Maks. rozmiar opony
30mm (Measured Width)
-
Rozmiary
47, 51, 54, 56, 58, 61
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 368 | 378 | 387 | 393 | 402 | 409 |
| Stack | 504 | 528 | 548 | 563 | 582 | 608 |
| Bar Reach | 72.5 | 72.5 | 72.5 | 72.5 | 72.5 | 72.5 |
| Bar Width | 360/420 | 360/420 | 360/420 | 360/420 | 360/420 | 360/420 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 367 | 367 | 367 | 367 | 367 | 367 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 108 | 133 | 149 | 165 | 185 | 211 |
| Head Tube Angle | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Seat Tube | 418 | 463 | 499 | 519 | 541 | 570 |
| Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset | 10 | 10 | 10 | 10 | 10 | 10 |
| Stem Angle | -15 | -15 | -15 | -15 | -15 | -15 |
| Stem Length | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube | 522 | 532 | 552 | 562 | 582 | 598 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 999 | 1015 | 1030 |
