Kaius 01
TWO

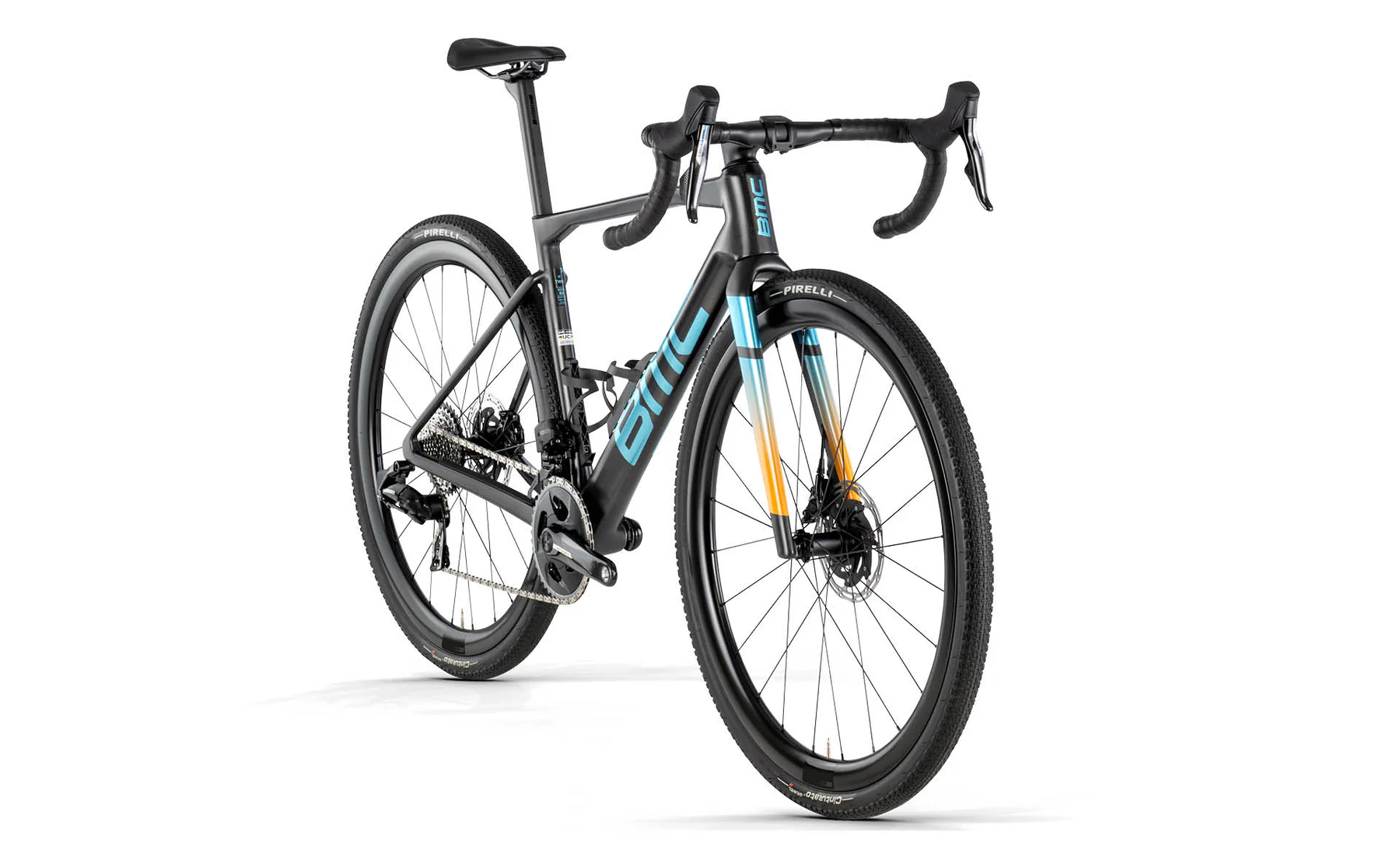

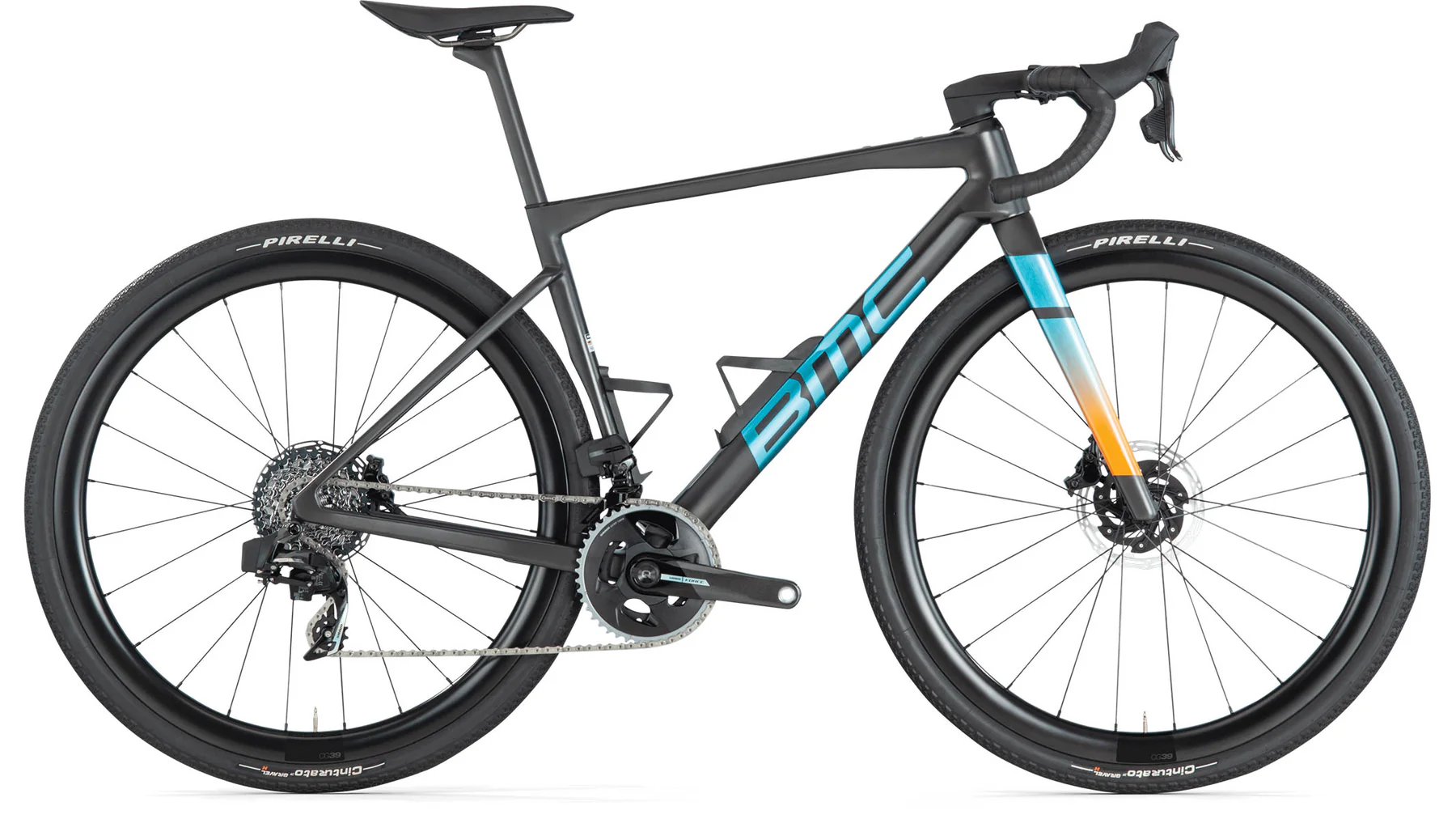

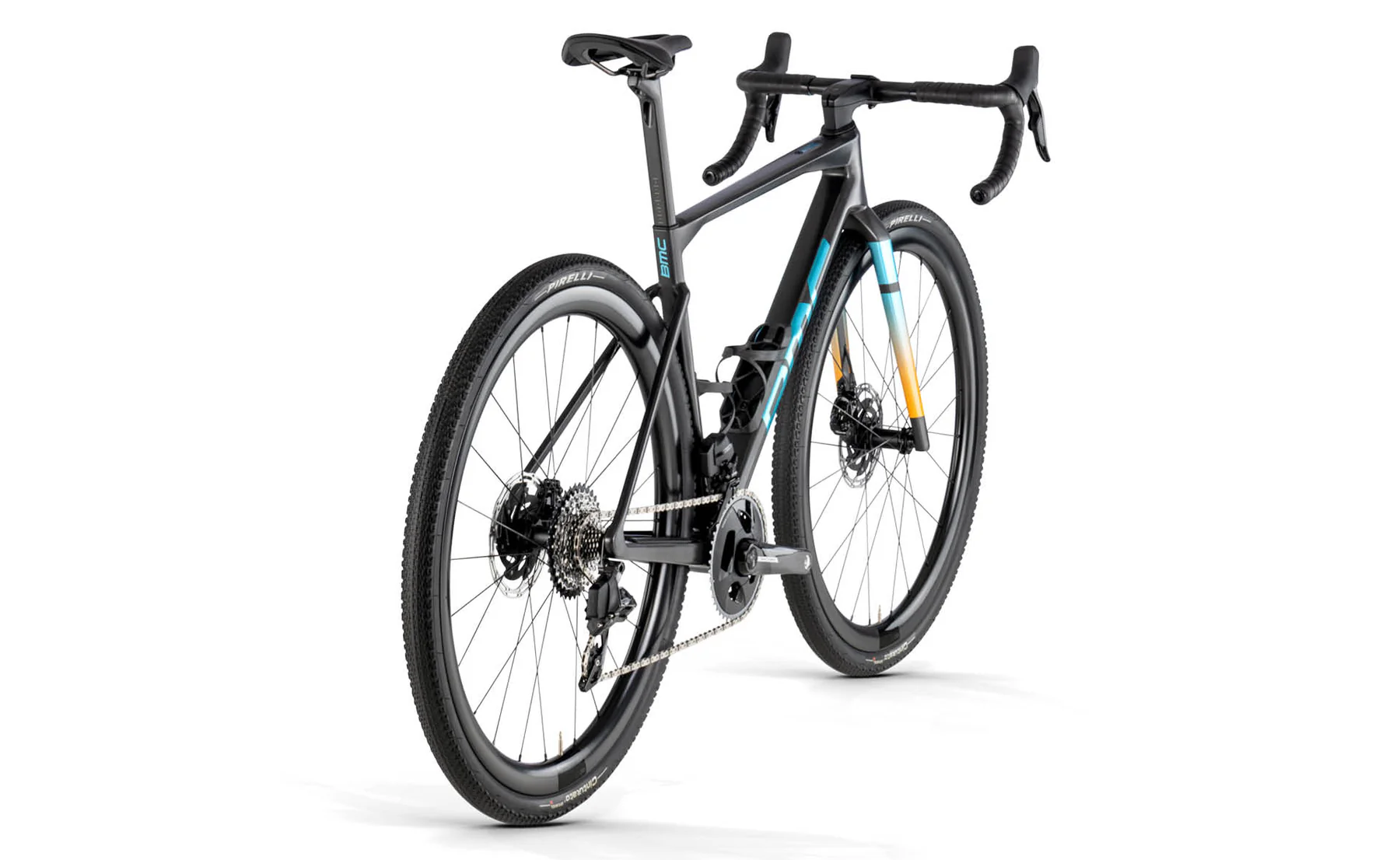

| Kaius is a premium carbon gravel bike built to be your elite race companion for all terrains. The unprecedented carbon layup and gravel-specific geometry ensure the perfect balance of stiffness, lightweight, and compliance for optimal traction on loose surfaces, front-end stability, and unmatched climbing prowess. Harnessing the precision and performance of our renowned leading road technologies, Kaius is a race machine tuned to the gravel wavelength with the engineered Kaius fork, our signature ICS2 stem and conventional bar, TCC Race compliance, compatibility with 1x and 2x drivetrains and up to 44 mm of tire clearance. |
Najbliższy sprzedawca przedstawi Ci ofertę.
Obowiązek informacyjny
Administratorem Twoich danych osobowych jest: Taurus Active sp. z o.o. , NIP 6351864367, Regon 524105331 z siedzibą przy ul. Józefa Wieczorka 11, 43-190 Mikołów, zwanym dalej „Administratorem” . Więcej »
Speed Unbound The innovative premium carbon layup uses ultra high-module fibres for unmatched stiffness resulting in maximum power transfer and minimal weight. Kaius boasts our Tuned Compliance Concept Race Technology for a comfortable ride on rough surfaces. |
Race-ready Gravel Geometry Kaius was built with one purpose: to be fast on gravel roads. That is why we produced a gravel-specific frame with a longer reach shifting the front wheel forward to improve stability and increase traction on loose surfaces. |
Integrated Cockpit System (ICS) ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices. |
All-new Gravel Wheelset Introducing the CG39 gravel wheelset, precision-crafted to meet the Kaius' demands. Tipping the scale at an impressive 1499g, it's the perfect companion for this bike, offering exceptional performance and style. |
Dane techniczne
-
Rama
Kaius 01 Premium Carbon with Aerocore Design
-
Widelec
Kaius 01 Premium Carbon, ICS Technology, Stealth Cable Routing, TCC Race Compliance Level, Stealth Dropout Design, Flat Mount Disc, 12x100mm Thru-Axle
-
Korba
SRAM Force AXS Dub WIDE 43-30T Power Meter
-
Biegi
2 x 12
-
Kaseta
SRAM FORCE AXS XG-1270 10-36T
-
Łańcuch
Sram FORCE 12 speed
-
Przerzutka przód
SRAM Force eTap AXS WIDE
-
Przerzutka tył
SRAM FORCE eTap AXS WIDE
-
Manetki
Sram FORCE eTap AXS HRD
-
Hamulce
SRAM FORCE eTap AXS HRD, Centerline X Rotors (160/160)
-
Kierownica
Easton EC70 AX Carbon
-
Siodełko
Fizik Vento Argo R3 – 140mm
-
Piasty
CG39 (Star Ratchet System, Straightpull Design)
-
Obręcze
CG39 Carbon Wheels (39mm rim height, 25mm inner width)
-
Opony
Pirelli Cinturato Gravel H, 40mm
-
Maks. rozmiar opony
44mm (Measured Width)
-
Rozmiary
47, 51, 54, 56, 58, 61
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 390 | 397 | 401 | 405 | 410 | 414 |
| Stack | 510 | 530 | 550 | 570 | 595 | 620 |
| Bar Drop | 120 | 120 | 120 | 120 | 120 | 120 |
| Bar Reach | 80 | 80 | 80 | 80 | 80 | 80 |
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| BB Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 387 | 387 | 387 | 387 | 387 | 387 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center | 596 | 610 | 608 | 619 | 632 | 644 |
| Head Tube | 85 | 106 | 123 | 144 | 170 | 196 |
| Head Tube Angle | 71 | 71 | 72 | 72 | 72 | 72 |
| Rear Center | 420 | 420 | 420 | 420 | 420 | 420 |
| Seat Angle | 73 | 73 | 73 | 73 | 73 | 73 |
| Seat Tube | 428 | 452 | 468 | 493 | 513 | 533 |
| Seatpost Length | 282 | 322 | 362 | 362 | 402 | 402 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 684 | 722 | 756 | 780 | 798 | 818 |
| Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
| Stem Length | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube | 546 | 559 | 569 | 579 | 592 | 604 |
| Trail | 66 | 66 | 68 | 68 | 68 | 68 |
| Wheelbase | 1003 | 1017 | 1015 | 1026 | 1039 | 1051 |
