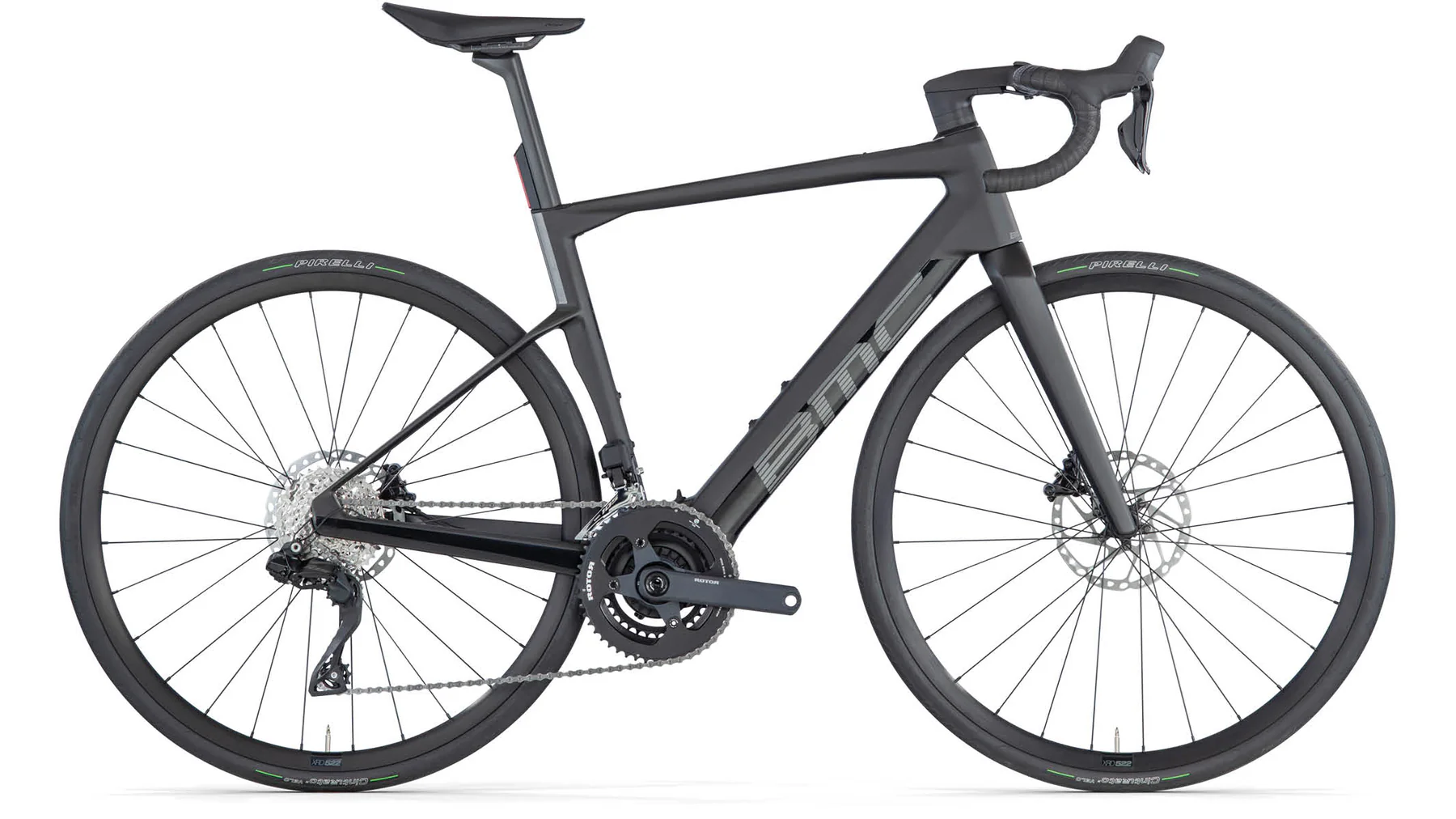

Roadmachine 01 AMP
THREE
Continuing the lineage of the Roadmachine, the 01 AMP THREE allies a technically refined design with the exceptionally light and quiet TQ-HPR50 system, that’s seamlessly integrated into the Premium Carbon frame. We’ve taken the smooth-shifting Shimano 105 Di2 groupset and matched it with our ICS2 system, XRD-522 wheels, and ultra-modern integration. In short, all the performance details needed to make every road your reality. |
Najbliższy sprzedawca przedstawi Ci ofertę.
Obowiązek informacyjny
Administratorem Twoich danych osobowych jest: Taurus Active sp. z o.o. , NIP 6351864367, Regon 524105331 z siedzibą przy ul. Józefa Wieczorka 11, 43-190 Mikołów, zwanym dalej „Administratorem” . Więcej »
Hidden Power Roadmachine 01 AMP extends your journey thanks to the revolutionary TQ-HPR50 drive unit. Powerful, light and compact, it is seamlessly integrated into the frame for an uncompromised look and natural ride feeling. |
Fast and Forgiving The most capable version of our Tuned Compliance Concept Endurance technology paves the way for a fast and forgiving ride. Take the edge of the roughest roads to push harder and ride further with the ultimate balance between comfort and performance. |
Safety First Light up your ride with integrated safety features. A custom BMC backlight is connected directly to the battery for long life and the computer mount offers easy installation of a front light. |
Integrated Cockpit System (ICS2) ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices. |
Dane techniczne
-
Rama
Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance
-
Widelec
Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12x100mm Thru-Axle
-
Korba
Rotor eVegast 50-34T
-
Biegi
2×12
-
Kaseta
SHIMANO CS-HG710 12spd 11-36T
-
Łańcuch
SHIMANO CN-M8100 12spd
-
Przerzutka tył
SHIMANO 105 Di2 RD-R7150 12spd
-
Manetki
SHIMANO 105 Di2 ST-R7170 12spd
-
Hamulce
SHIMANO 105 BR-R7170
-
Kierownica
BMC RAB 02, ergo top shape, compact bend
-
Mostek
BMC ICS2 – Integrated Cockpit Design
-
Siodełko
Fizik Argo Tempo R5 (150mm)
-
Wspornik siodełka
Roadmachine 01 AMP Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
-
Piasty
XRD-522
-
Obręcze
XRD-522, Tubeless Ready, 25 mm
-
Opony
Pirelli Cinturato Velo TLR, 32mm
-
Maks. rozmiar opony
38mm (Measured Width)
-
Rozmiary
47, 51, 54, 56, 58, 61
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Rider Height | <162 | 162-174 | 172-180 | 178-186 | 184-192 | >190 |
Reach | 370 | 379 | 383 | 388 | 393 | 398 |
Stack | 525 | 550 | 570 | 595 | 620 | 645 |
Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
BB Drop | 75 | 75 | 75 | 75 | 75 | 75 |
Crank Length | 170 | 170 | 170 | 170 | 170 | 170 |
Fork Length | 380 | 380 | 380 | 380 | 380 | 380 |
Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
Front Center | 579 | 596 | 594 | 607 | 620 | 633 |
Head Tube | 112 | 138 | 154 | 181 | 207 | 233 |
Head Tube Angle | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
Rear Center | 420 | 420 | 420 | 420 | 420 | 420 |
Seat Angle | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
Seat Tube | 420 | 460 | 500 | 525 | 545 | 575 |
Seatpost Length | 230 | 280 | 280 | 280 | 280 | 330 |
Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
Standover Height | 728 | 755 | 786 | 810 | 829 | 850 |
Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
Stem Length | 90 | 90 | 100 | 110 | 110 | 110 |
Top Tube | 519 | 535 | 544 | 556 | 568 | 581 |
Trail | 63 | 63 | 63 | 63 | 63 | 63 |
Wheelbase | 987 | 1005 | 1002 | 1015 | 1028 | 1041 |
