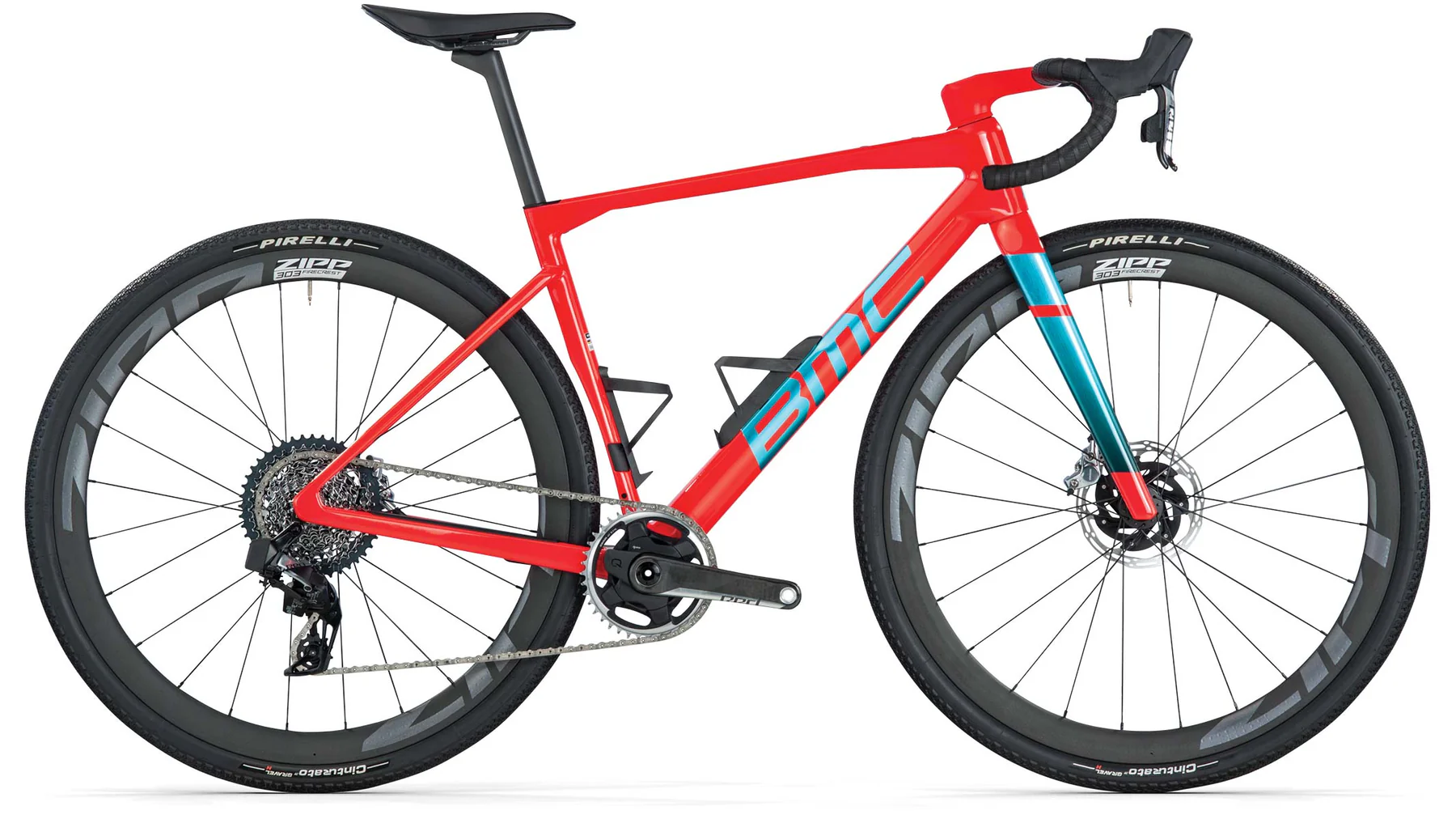

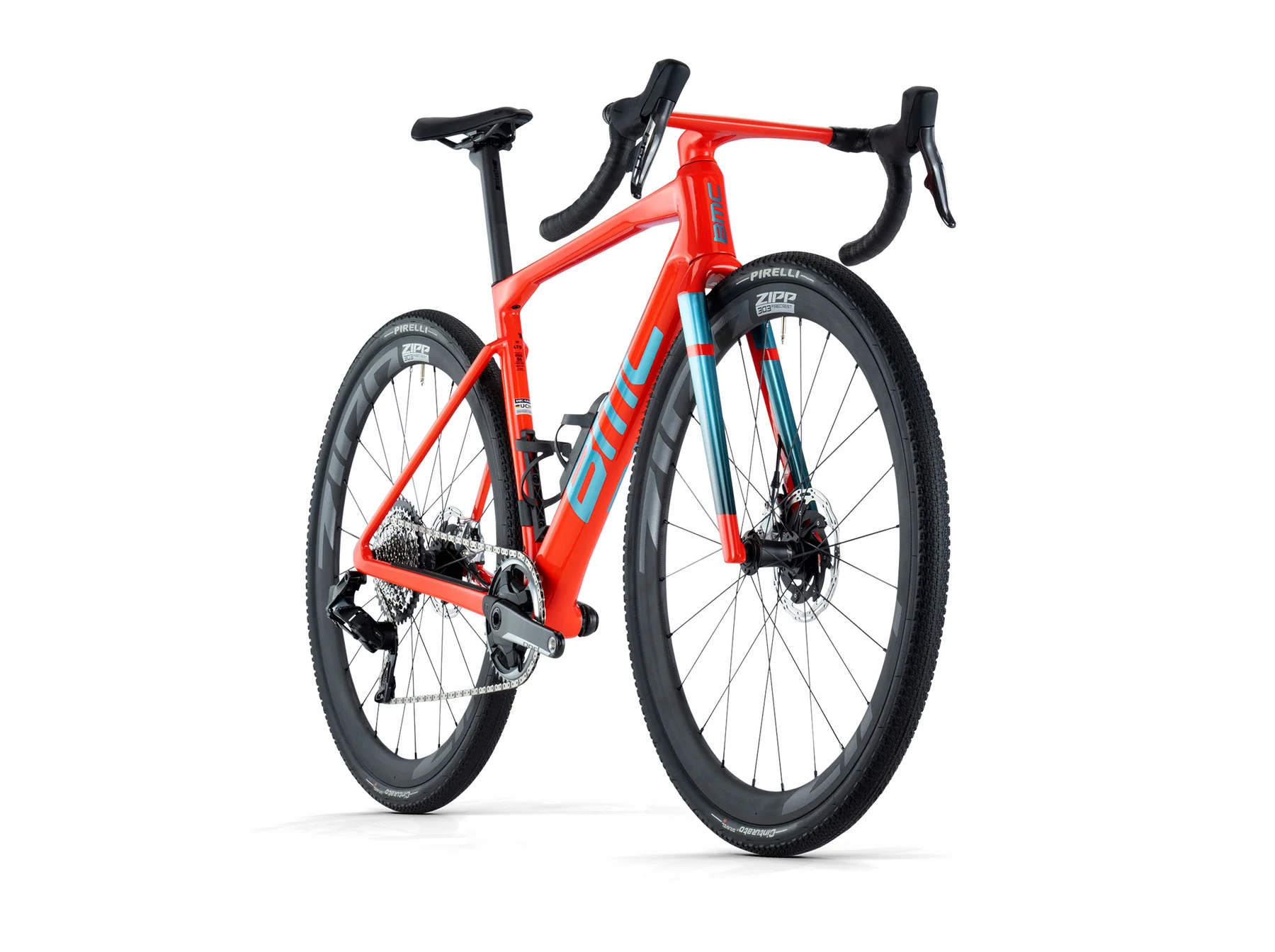

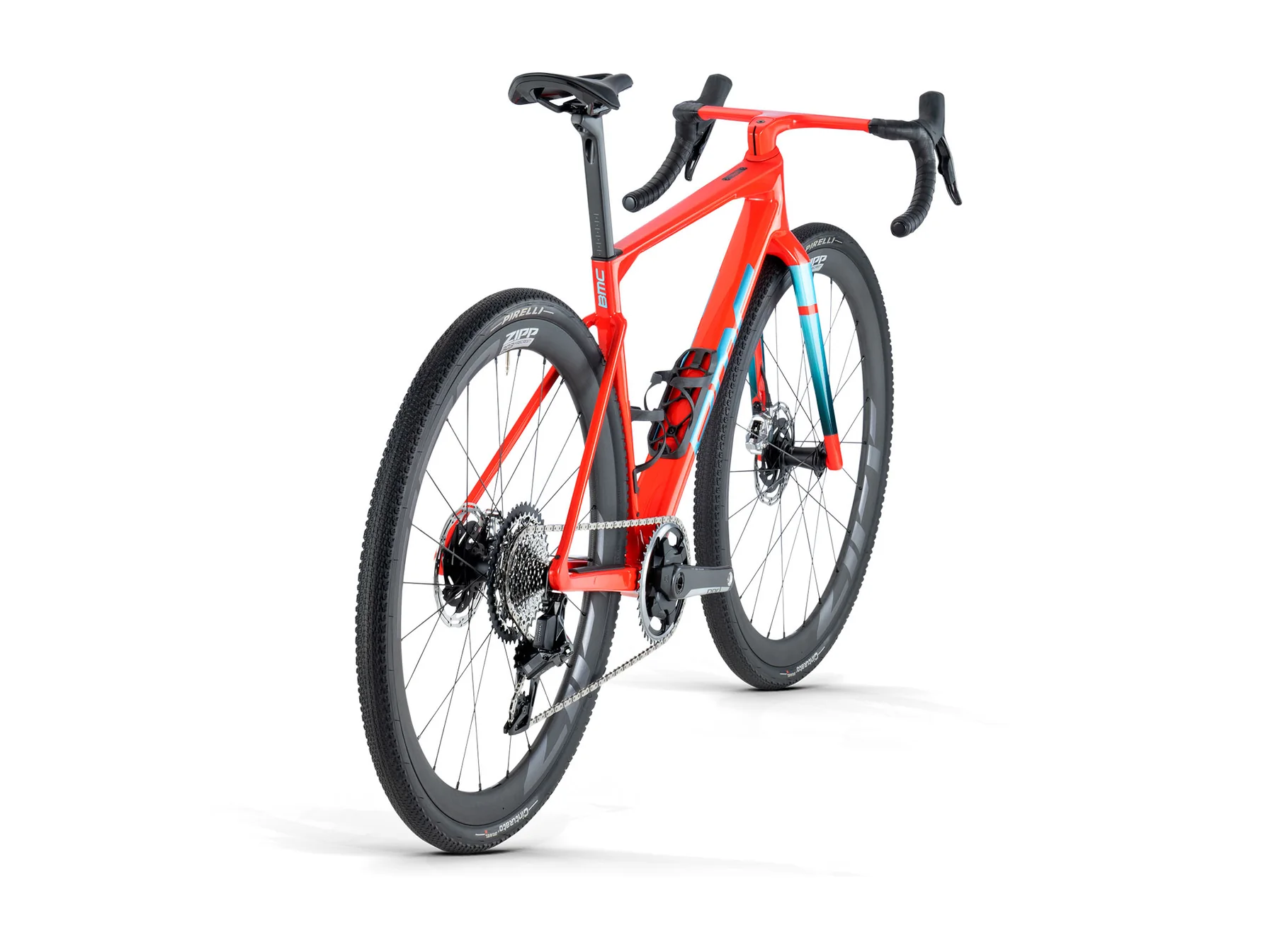

Kaius 01
LTD
| Kaius is a premium carbon gravel bike built to be your elite race companion for all terrains. The unprecedented carbon layup and gravel-specific geometry ensure the perfect balance of stiffness, lightweight, and compliance for optimal traction on loose surfaces, front-end stability, and unmatched climbing prowess. Harnessing the precision and performance of our renowned leading road technologies, Kaius is a race machine tuned to the gravel wavelength with the engineered Kaius fork, our ICS Carbon Evo Cockpit, TCC Race compliance, compatibility with 1x and 2x drivetrains and up to 44 mm of tire clearance. |
Najbliższy sprzedawca przedstawi Ci ofertę.
Obowiązek informacyjny
Administratorem Twoich danych osobowych jest: Taurus Active sp. z o.o. , NIP 6351864367, Regon 524105331 z siedzibą przy ul. Józefa Wieczorka 11, 43-190 Mikołów, zwanym dalej „Administratorem” . Więcej »
Speed Unbound The innovative premium carbon layup uses ultra high-module fibres for unmatched stiffness resulting in maximum power transfer and minimal weight. Kaius boasts our Tuned Compliance Concept Race Technology for a comfortable ride on rough surfaces. |
Race-ready Gravel Geometry Kaius was built with one purpose: to be fast on gravel roads. That is why we produced a gravel-specific frame with a longer reach shifting the front wheel forward to improve stability and increase traction on loose surfaces. |
ICS Carbon Evo Cockpit Where integration meets highly functional comfort. The next-gen ICS Carbon Evo cockpit has a revised form for better fit, and signature BMC comfort and control. Super lightweight, check. Stiff, check. 8° flare for added control, check. |
Aerocore Design Kaius comes in at the highest level of functional integration with our Aerocore design. This evolved solution integrates the bottle cages into the frame to optimize aerodynamic performance. |
Dane techniczne
-
Rama
Kaius 01 Premium Carbon with Aerocore Design
-
Widelec
Kaius 01 Premium Carbon, ICS Technology, Stealth Cable Routing, TCC Race Compliance Level, Stealth Dropout Design, Flat Mount Disc, 12x100mm Thru-Axle
-
Korba
SRAM RED 1 AXS Dub WIDE 42T Power Meter
-
Biegi
1×12
-
Kaseta
SRAM XPLR XG-1271 10-44T
-
Łańcuch
Sram RED 12 speed
-
Przerzutka tył
SRAM Red AXS XPLR
-
Manetki
Sram RED eTap AXS HRD
-
Hamulce
SRAM RED eTap AXS HRD, Centerline X Rotors (160/160)
-
Kierownica
ICS Carbon Evo, One-Piece Full Carbon Cockpit
-
Siodełko
Fizik Vento Argo R1 – 140mm
-
Piasty
Zipp 303 Firecrest
-
Obręcze
Zipp 303 Firecrest
-
Opony
Pirelli Cinturato Gravel H, 40mm
-
Maks. rozmiar opony
44mm (Measured Width)
-
Rozmiary
47, 51, 54, 56, 58, 61
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 390 | 397 | 401 | 405 | 410 | 414 |
| Stack | 510 | 530 | 550 | 570 | 595 | 620 |
| Bar Drop | 135 | 135 | 135 | 135 | 135 | 135 |
| Bar Reach | 72.5 | 72.5 | 72.5 | 72.5 | 72.5 | 72.5 |
| Bar Width | 400 | 400 | 400 | 400 | 400 | 400 |
| BB Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 387 | 387 | 387 | 387 | 387 | 387 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center | 596 | 610 | 608 | 619 | 632 | 644 |
| Head Tube | 85 | 106 | 123 | 144 | 170 | 196 |
| Head Tube Angle | 71 | 71 | 72 | 72 | 72 | 72 |
| Rear Center | 420 | 420 | 420 | 420 | 420 | 420 |
| Seat Angle | 73 | 73 | 73 | 73 | 73 | 73 |
| Seat Tube | 428 | 452 | 468 | 493 | 513 | 533 |
| Seatpost Length | 282 | 322 | 362 | 362 | 402 | 402 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 684 | 722 | 756 | 780 | 798 | 818 |
| Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
| Stem Length | 80 | 90 | 90 | 100 | 100 | 110 |
| Top Tube | 546 | 559 | 569 | 579 | 592 | 604 |
| Trail | 66 | 66 | 68 | 68 | 68 | 68 |
| Wheelbase | 1003 | 1017 | 1015 | 1026 | 1039 | 1051 |
