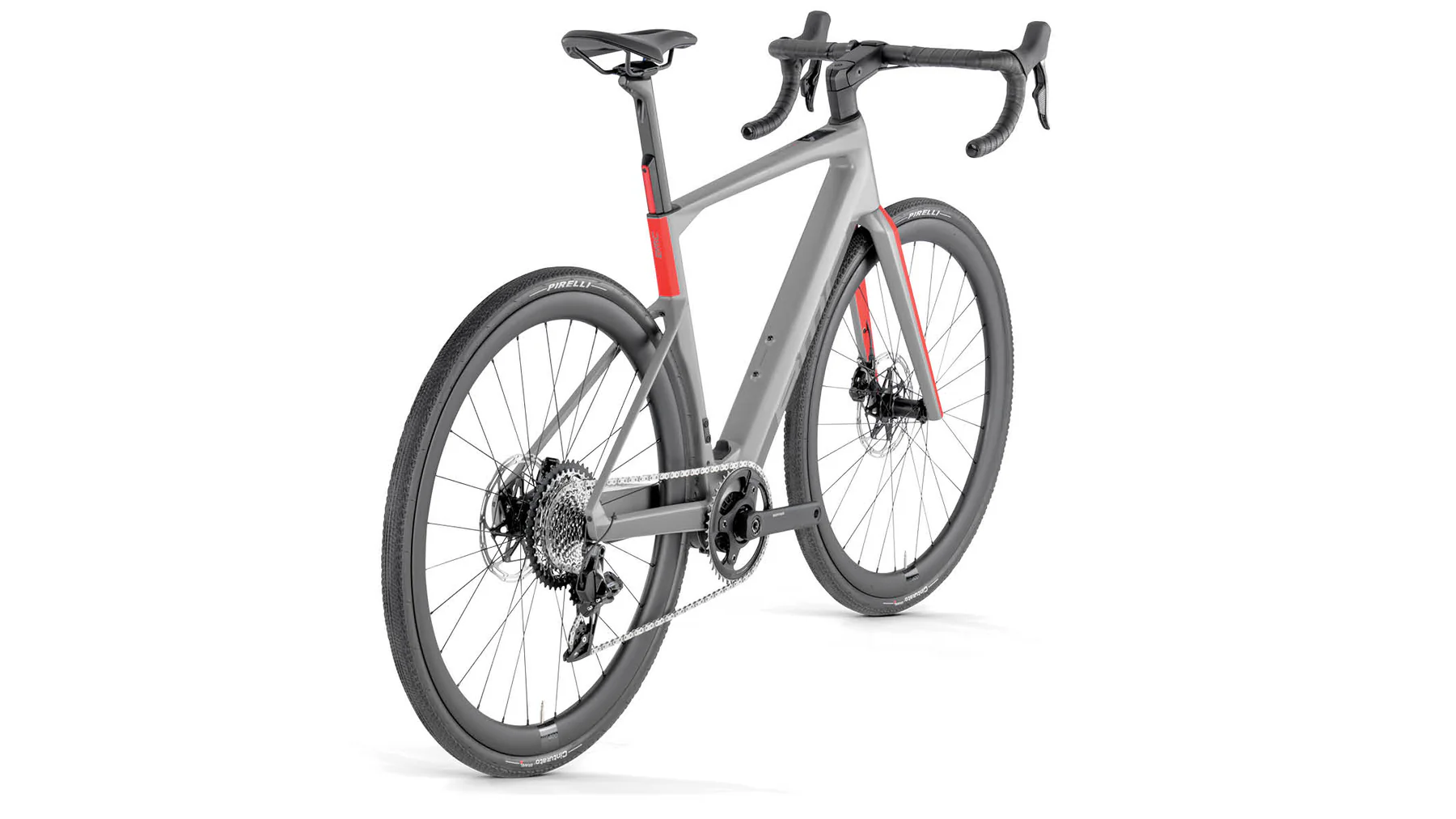

Roadmachine 01 AMP X ONE
35790,00 zł
Enhance your long rides with the Roadmachine 01 AMP X ONE, a road e-bike crafted to expand your horizons. Experience boosted performance with the top-of-the-line TQ-HPR50 drive system, complemented by a premium carbon frame and fork featuring the latest Tuned Compliance Concept Endurance technology. Enjoy comfort on various terrains, thanks to internal cable routing, a high-quality carbon D-Shape seatpost, generous tire clearance, and the advanced ICS MTT x Redshift Suspension stem. Blaze your own trail with the Roadmachine 01 AMP X ONE, equipped with the SRAM Force XPLR eTap AXS 12-speed groupset, 35 mm Pirelli Cinturato Gravel tires, and the powerful TQ-HPR50 drive unit.
Technologia
Specyfikacja Techniczna
|
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Rider Height | <162 | 162-174 | 172-180 | 178-186 | 184-192 | >190 |
Reach | 370 | 379 | 383 | 388 | 393 | 398 |
Stack | 525 | 550 | 570 | 595 | 620 | 645 |
Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
BB Drop | 75 | 75 | 75 | 75 | 75 | 75 |
Crank Length | 170 | 170 | 170 | 170 | 170 | 170 |
Fork Length | 380 | 380 | 380 | 380 | 380 | 380 |
Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
Front Center | 579 | 596 | 594 | 607 | 620 | 633 |
Head Tube | 112 | 138 | 154 | 181 | 207 | 233 |
Head Tube Angle | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
Rear Center | 415 | 415 | 415 | 415 | 415 | 415 |
Seat Angle | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
Seat Tube | 420 | 460 | 500 | 525 | 545 | 575 |
Seatpost Length | 230 | 280 | 280 | 280 | 280 | 330 |
Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
Standover Height | 728 | 755 | 786 | 810 | 829 | 850 |
Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
Stem Length | 80 | 90 | 100 | 100 | 110 | 110 |
Top Tube | 519 | 535 | 544 | 556 | 568 | 581 |
Trail | 63 | 63 | 63 | 63 | 63 | 63 |
Wheelbase | 982 | 1000 | 997 | 1010 | 1023 | 1036 |
